Description:

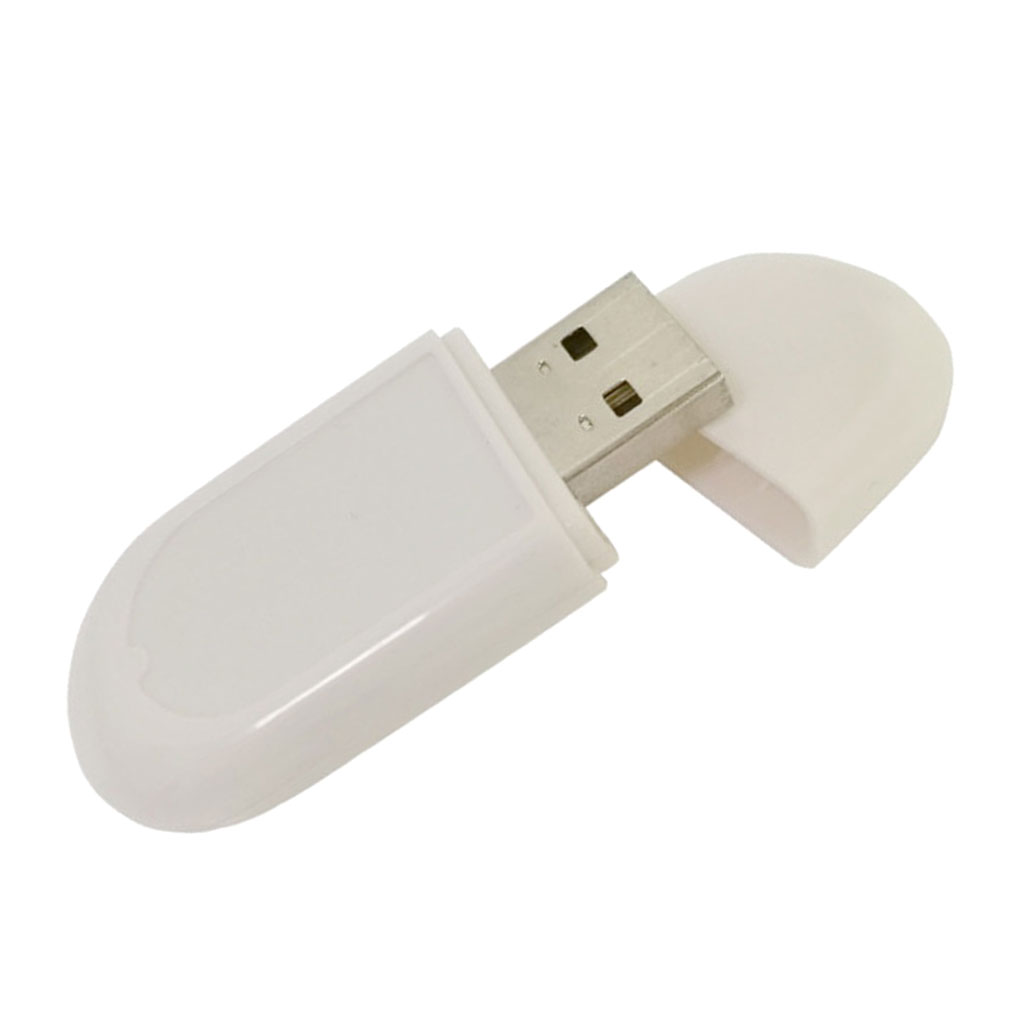

WiFi chip probe is a 2.4G-based probe product.
WiFi chip, 50 seconds for acquisition, 3-5 seconds for transmission
Standard male USB interface and 5V power supply;
The real-time dynamic detector based on WiFi technology should meet the needs of various services such as tracking, attendance, various indicators of commercial wireless devices.
The device includes a 2.4G transmission capture module.
The IEEE 802.11 Management Frame can also capture the Data Frame: the AP is connected to the mobile terminal, and the WIFI is used to access the data package.

Specification:

Wireless standard: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b.
Number of channels: 1-13
Environmental standard operating temperature: 0-40℃
Power Specifications: 5V, 2W

Configuration method:
1.The module is powered on, and the device works in hotspot mode. The hotspot name is “WX_xxxxxx”, where“xxxxxx” is the product ID of the device. The product ID is the unique identifier of the device and is used to identify each device when applying data.
2.Use a laptop or smartphone to connect to the above hotspots. The password is: None.

Package Includes:

1 piece WIFI probe
