Description:

Output drive capability: 250V AC 10A, 125V AC 10A, 30V DC 10A, 28V DC 10A.
Easy to use, each group outputs a simple 3-wire structure, and 6 output terminals are reserved.
The input connect to the IO port or digital circuit of the MCU. The input high level relay is pulled in, and the input low level relay is released.
Working voltage 5V, pull-in current about 70mA each way. With relay status indicator.
Full-chip component, the most reasonable drive circuit design, using 8050 triode drive relay.
Fixed screw holes, easy to install.
Dimension: 18x40x19mm/0.71x1.57x0.75inch.

Package Includes:

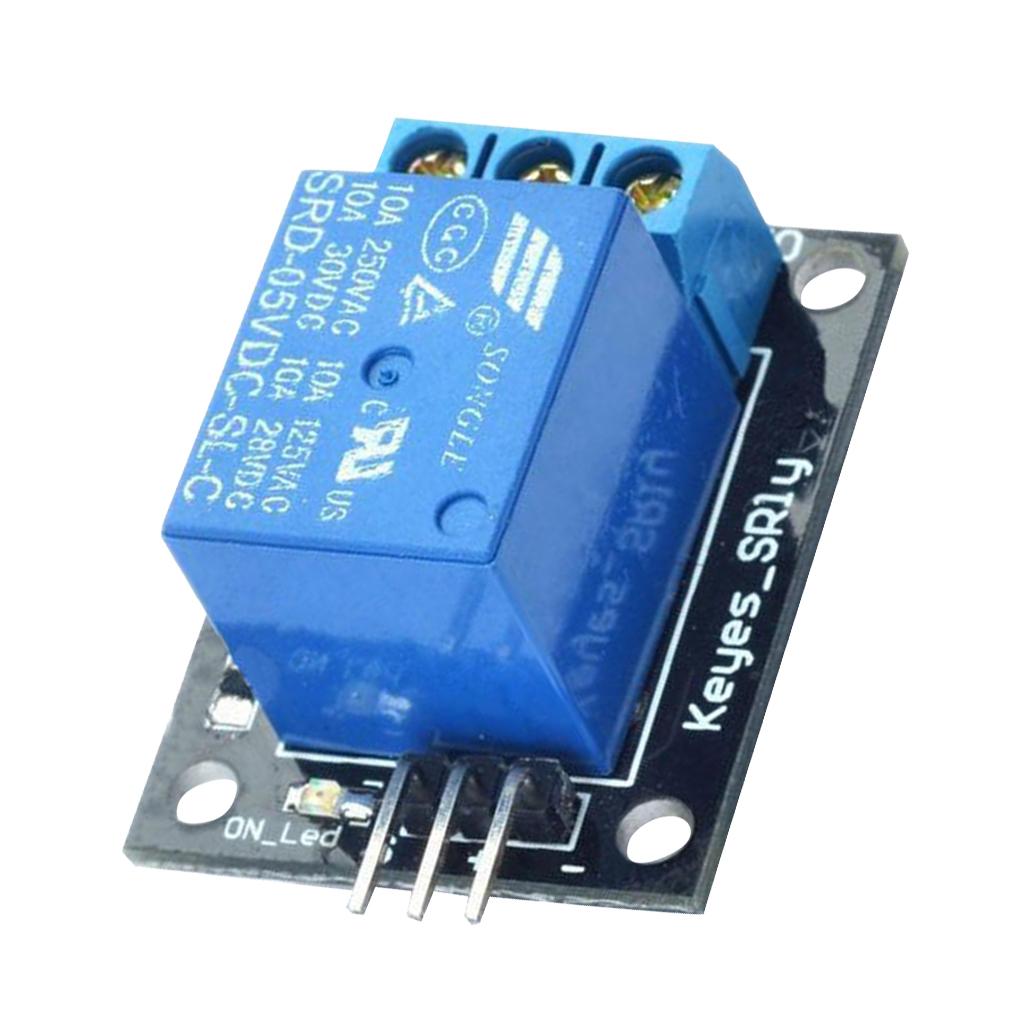

1 Piece 1-Channel 5V Relay Module

Note:

The above size is measured by hand, please allow slightly difference. Thanks !
