Description:

Supports six-channel data reception.
Low operating voltage: 1.9 ~ 3.6V.
High speed: 2 Mbps, due to short air transmission time, greatly reducing the collision phenomenon in wireless transmission (software setting 1 Mbps or 2 Mbps air transmission rate).
Multi-frequency point, 125 frequency points to meet the needs of multi-point communication and frequency hopping communication.
Mini and compact size, built-in 2.4GHz antenna, low power consumption.

Specification:

Mini NRF24L01 wireless module
2Mbit / s 1Mbit / s 250Kbit / s transfer rate options
+ / - 60 ppm crystal
Only need an external inductance when match antenna
5V input tolerance level
No need external level converter
Improved ShockBurst and serial interface can be easily connected with a variety of low-cost MCU
No MCU with SPI Interface
20 pin 4x4mm QFN leadless package very few external components
The 2Mbit / s rate when the peak current 12.5mA received
The 2Mbit / s rate @ 0dBm output current of 11mA peak
2Mbit / s rate of only a small average current
400nA Power-down mode, power consumption
Power consumption of 32uA in standby mode
130us fast switching and wake-up time
With on-chip voltage regulator oltage regulators
Application: Mouse, keyboard, wireless headsets, intelligent sports equipment, remote controls, voice applications, security devices, VOIP applications.

Package Includes:

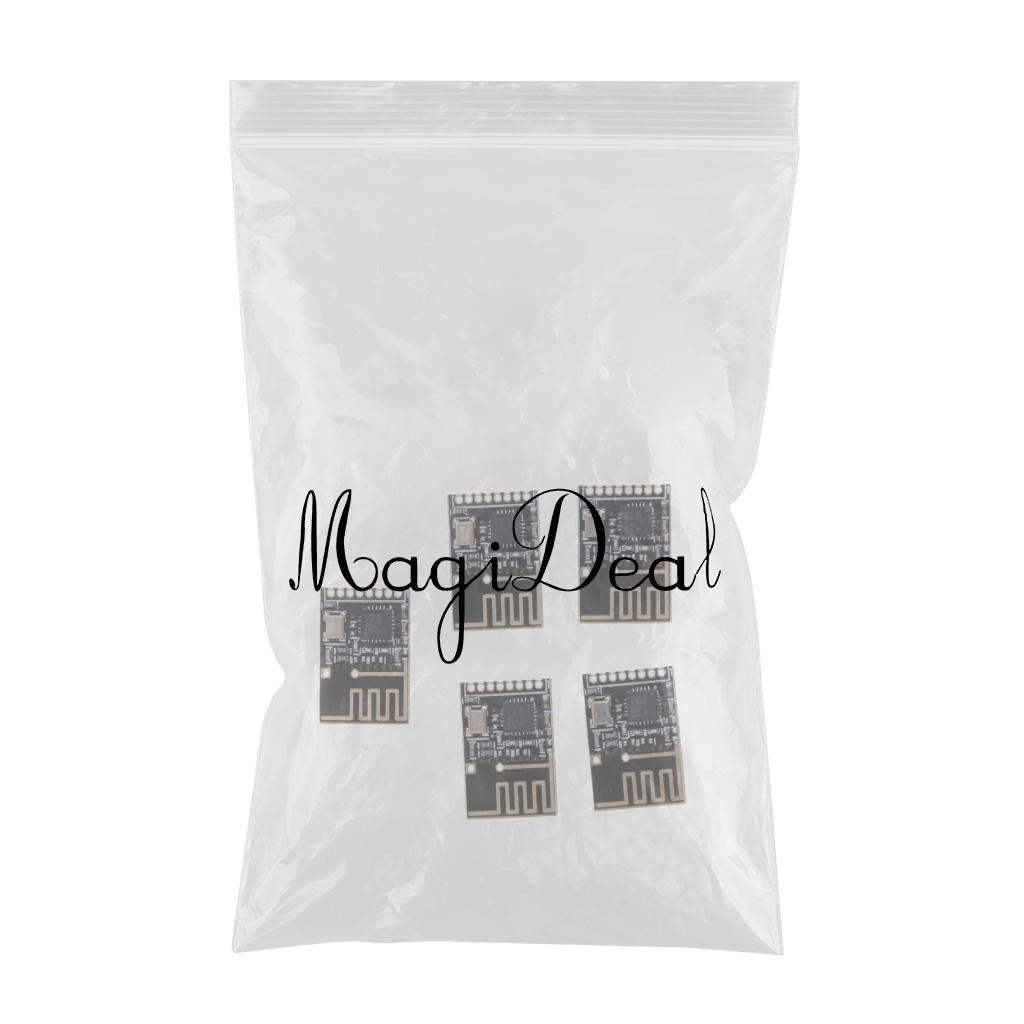

5 Pieces Wireless Transceiver Module
